20R 440W Beam , 19R 400W 3 In 1 Moving Head Light , Mythos , 3 Gobo Wheels , 2 Color Wheels
Advantage
Beam Spot Wash 3 In 1 With Zoom ,Gobos Are Much Bigger Than Normal
Specification
Voltage : AC100V-240V/50-60Hz
Rated Power : 650W
Lamp : 440 Watt,400 Watt
Channe : 26 CHS / 24 CHS
Gobo Wheel 1 : One Rotation Gobo Wheel Including 4 PCS Replaceable Gobos
Gobo Wheel 2 : One Fixed Gobo Wheel Including 14 Gobos + Open
Gobo Wheel 3 : Effect Gobo Wheel With 5 Gobos + Open
Color Wheel 1 : 13 Colors + Open
Color Wheel 2 : Rainbow Color Wheel With 6 Colors + Open
Prism 1 : 24 Facet Prism
Prism 2 : 8 Facet Prism
Zoom Angle: 2.5-40degree Linear Zoom And Automatically Zoom
Electrical Focus, Strobe, Dimmer, Frost Lens, Wash Effect
Pan: 540 Degree Tilt: 270 Degree IP Rate: IP20
Other Functions: Lamp On-Off Function And Reset Through
Controller, Auto-Run Mode, Master/Slave Mode, Sound Mode.
Accessories
Power Cable
Signal Cale
Quick Lock
Bracket
| Standard | Simplify | Function |
| CH1 | CH1 | Pan |
| CH2 | CH2 | Tilt |
| CH3 | | Pan Fine |
| CH4 | | Tilt fine |
| CH5 | CH3 | Focus |
| CH6 | CH4 | Zoom |
| CH7 | CH5 | Strobe |
| CH8 | CH6 | Dimmer |
| CH9 | CH7 | Color wheel |
| CH10 | | Color effect |
| CH11 | CH8 | Fixed Gobo Wheel |
| CH12 | | Gobo Sharking |
| CH13 | CH9 | Rotation Gobos |
| CH14 | CH10 | Gobos Rotation |
| CH15 | CH11 | Effect Gobos |
| CH16 | CH12 | Prism 1 |
| CH17 | CH13 | Prism 1 Rotation |
| CH18 | CH14 | Prism 1 |
| CH19 | CH15 | Prism 1 Rotation |
| CH20 | CH16 | 6 Color Effect |
| CH21 | CH17 | Frost Effect |
| CH22 | CH18 | Automatic Zoom |
| CH23 | CH19 | Built-in Program |
| CH24 | | Empty |
| CH25 | | Pan Tilt Speed |
| CH26 | CH20 | Lamp & Reset
(lamp off 100-105,lamp on 200-205, Reset 255) |

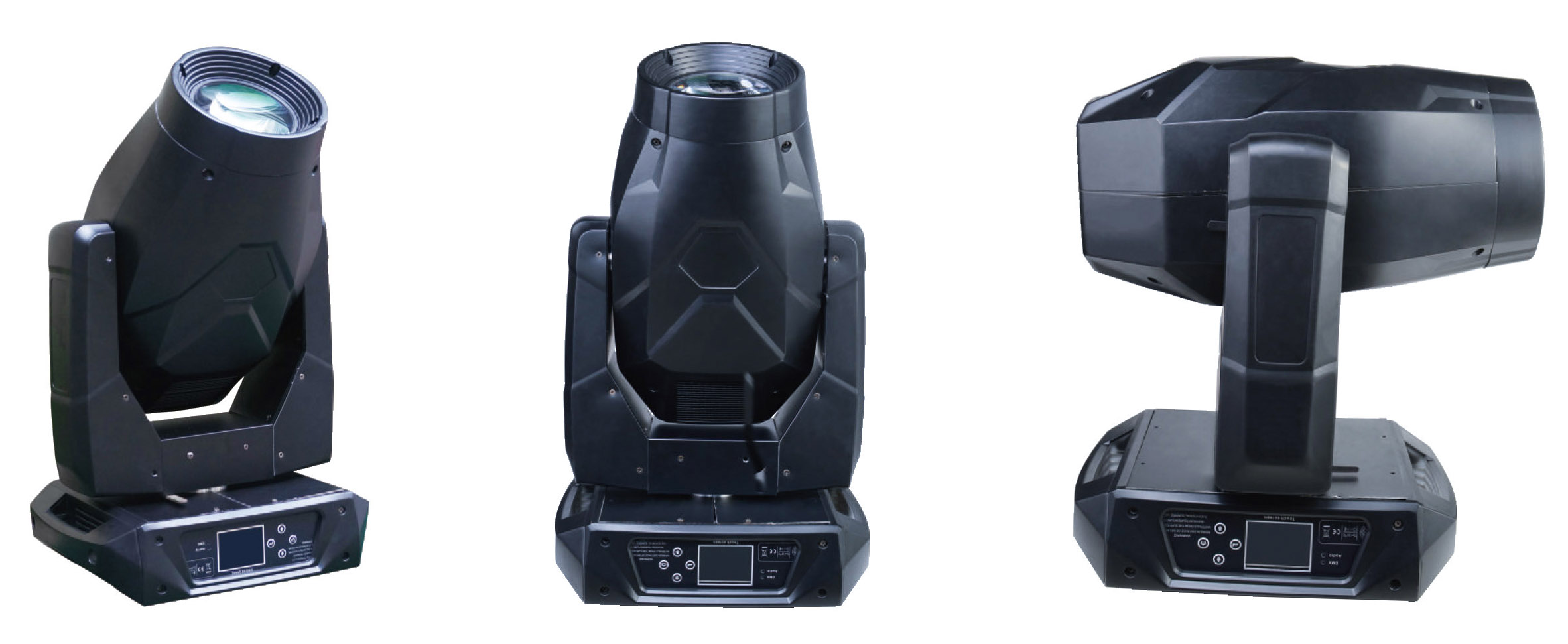

All Aspects Pictures
Fireworks Effects

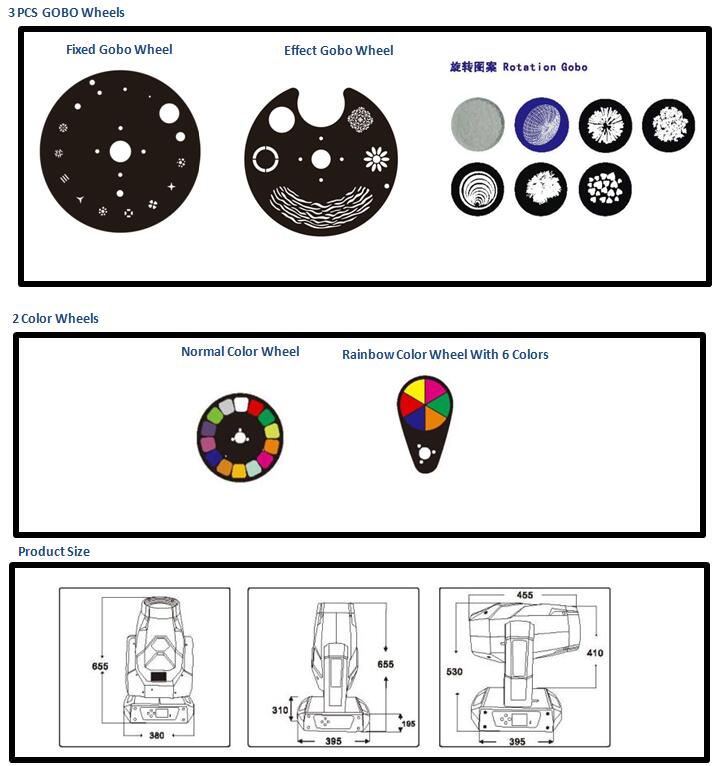

Gobo Wheel And Color Wheels
